Description
Features
1. Completely cut off the current flow and prevent “magic smoke”
For other smoke stoppers like the automotive light-bulb or resettable fuse, they just limit not stop the current flow, the leakage current may still damage your components. VIFLY ShortSaver is a different smoke stopper that adopts the electronic fuse to completely cut off the current into your RC build if a short circuit or wiring mistake is detected.
2. Super-fast reaction/protection time
VIFLY ShortSaver would turn off the power to a device that drew in excess of the switchable 1A or 2A threshold within just 3ms. It is far more effective than the old way of using light-bulb or resetting fuse. The shorter the protection time, the safer your build will be as something make break by the time the fuse trips.

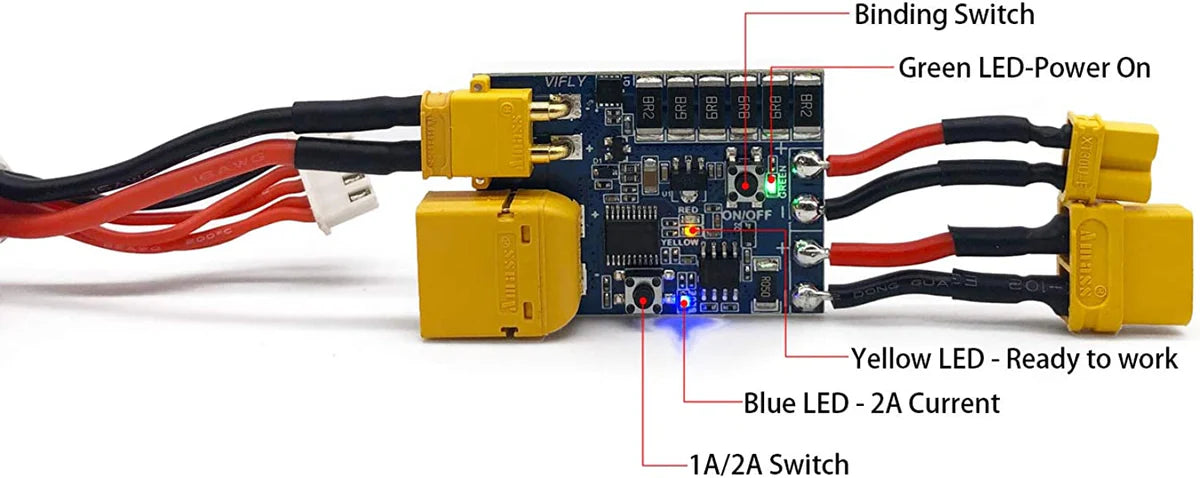

3. Power ON/OFF Switch for Easier Receiver Binding
Holding down the bind button and applying power can be challenging sometimes. The new version of VIFLY ShortSaver added a power on/off switch that can make your receiver binding much more convenient.
4. 1 Amp and 2 Amp Threshold Selector
VIFLY ShortSaver 2 is so smart that there is 1 Amp or 2 Amp threshold selector for your different needs. For small size build with more sensitive electronic components, you can select 1 Amp option, for large builds, 2 Amp option is the choice.
5. Amass XT60 and XT30 In-output Connectors
VIFLY ShortSaver 2 is coming with both Amass XT30 and XT60 connectors, more convenient for your different batteries.
Specification
| Size(L x W x H): |
42 x 30 x 10 mm |
| Connector |
XT30 & XT60 (Input and Output) |
| Switchable current threshold |
1A/2A |
| Trip time |
3ms (Short-Circuit) / 10ms (Over-Current) |
| Input Voltage |
7-25V (2-6S) |
