IT'S FPV 1604.5 3650KV Motor

Description

T-Hobby x IT'S FPV 1604.5 3650KV — Cruising Power, Freestyle Toughness.

Co-developed with IT'S FPV, this motor brings 5-inch drone structural strength into a lightweight 3.5-inch package. Say goodbye to fragile T-Mount twin-screws—the robust 3mm Titanium Through-Shaft offers unmatched crash resistance and ultra-fast prop swaps. Machined from a single piece of 7075 aluminum (Unibell) with strict ≤ 5mg dynamic balance, it delivers a smooth, jello-free HD feed and a massive 599g of peak thrust.

  • Co-Developed for 3.5": Perfect balance between 3" agility and 5" power.

  • 3mm Titanium Shaft: M3 nut lock design for maximum impact resistance.

  • 7075 CNC Unibell: Seamless aluminum structure for ultimate durability.

  • 599g Massive Thrust: High thrust-to-weight ratioat only 13.8g (with cables).

Frequently Bought Together (Combinations Guide)

  • Recommended Propeller: Gemfan 3525-3 (Tri-blade). Delivers peak cruise efficiency  and a linear throttle feel.

  • Compatible Frames: Any 3.5" freestyle or ducted Cinewhoop frame with a standard 12*12MM M2 pattern.

  • ESC & FC Setup: T-HOBBY 35A - 45A 4-in-1 ESC / AIO. Fits perfectly with the motor's 19A peak current headroom.

  • Battery & Weight: 4S LiPo (750mAh - 1100mAh). Keeps total takeoff weight at the ideal 250g - 350g sweet spot

Here is the matching Pure English version for the Combinations (Frequently Bought Together) and the Technical Specifications Table.

Both have been shortened and optimized to keep your product page fast, clean, and highly professional:

Frequently Bought Together (Combinations Guide)

  • Recommended Propeller: Gemfan 3525-3 (Tri-blade). Delivers peak cruise efficiency ($3.70\text{ gf/W}$ at 30% throttle) and a linear throttle feel.

  • Compatible Frames: Any 3.5" freestyle or ducted Cinewhoop frame with a standard $12 \times 12\text{mm}$ M2 pattern.

  • ESC & FC Setup: 35A - 45A 4-in-1 ESC / AIO. Fits perfectly with the motor's 19A peak current headroom.

  • Battery & Weight: 4S LiPo (750mAh - 1100mAh). Keeps total takeoff weight at the ideal 250g - 350g sweet spot.

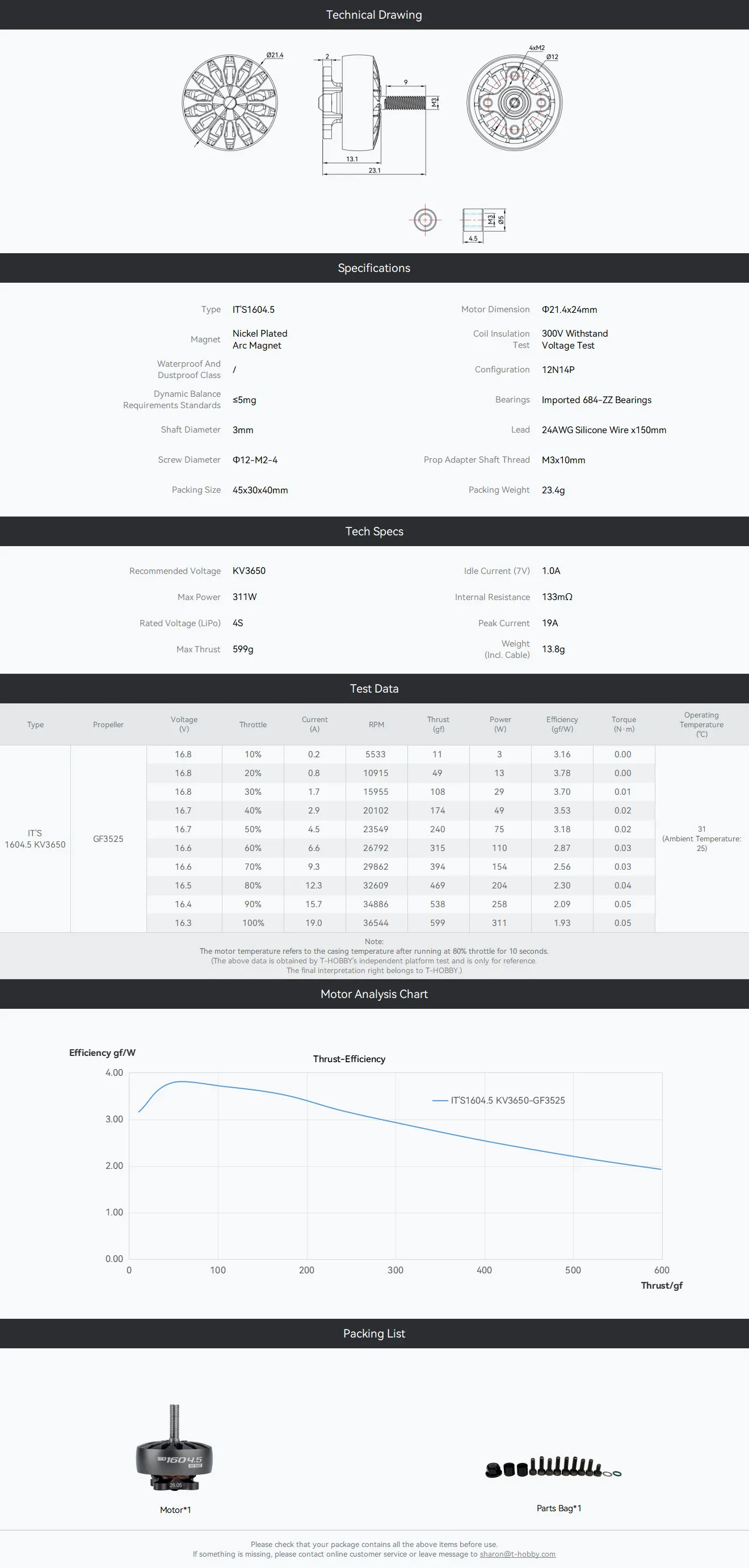

Technical Specifications


  • Motor Model: IT'S 1604.5

  • KV Options: 3650KV

  • Configuration: 12N14P

  • Motor Dimensions: Φ21.4 x 24mm

  • Shaft Diameter: 3mm Titanium Through-Shaft

  • Prop Adapter Thread: M3 x 10mm (with M3 locknut)

  • Mounting Pattern: 12 x 12mm M2

  • Lead Wire Specifications: 24AWG Silicone Wire x 150mm

  • Weight (Including Cable): 13.8g

  • Rated Voltage / Max Power: 4S LiPo (16.8V) / 311W

  • Peak Current / Max Thrust: 19A / 599g

  • Bell Material / Bottom Structure: 7075 Aluminum Unibell / Single M2 Screw

  • Factory Dynamic Balance: ≤ 5mg

specification

IT'S FPV 1604.5 3650KV Motor

Product form

£18.90

    • Guaranteed secure & safe checkout.

      shop pay
    • Shipped today? Order within: Jul 10, 2026 14:00:00 +0100

    Description

    T-Hobby x IT'S FPV 1604.5 3650KV — Cruising Power, Freestyle Toughness.

    Co-developed with IT'S FPV, this motor brings 5-inch drone structural strength into a lightweight 3.5-inch package. Say goodbye to fragile T-Mount twin-screws—the robust 3mm Titanium Through-Shaft offers unmatched crash resistance and ultra-fast prop swaps. Machined from a single piece of 7075 aluminum (Unibell) with strict ≤ 5mg dynamic balance, it delivers a smooth, jello-free HD feed and a massive 599g of peak thrust.

    • Co-Developed for 3.5": Perfect balance between 3" agility and 5" power.

    • 3mm Titanium Shaft: M3 nut lock design for maximum impact resistance.

    • 7075 CNC Unibell: Seamless aluminum structure for ultimate durability.

    • 599g Massive Thrust: High thrust-to-weight ratioat only 13.8g (with cables).

    Frequently Bought Together (Combinations Guide)

    • Recommended Propeller: Gemfan 3525-3 (Tri-blade). Delivers peak cruise efficiency  and a linear throttle feel.

    • Compatible Frames: Any 3.5" freestyle or ducted Cinewhoop frame with a standard 12*12MM M2 pattern.

    • ESC & FC Setup: T-HOBBY 35A - 45A 4-in-1 ESC / AIO. Fits perfectly with the motor's 19A peak current headroom.

    • Battery & Weight: 4S LiPo (750mAh - 1100mAh). Keeps total takeoff weight at the ideal 250g - 350g sweet spot

    Here is the matching Pure English version for the Combinations (Frequently Bought Together) and the Technical Specifications Table.

    Both have been shortened and optimized to keep your product page fast, clean, and highly professional:

    Frequently Bought Together (Combinations Guide)

    • Recommended Propeller: Gemfan 3525-3 (Tri-blade). Delivers peak cruise efficiency ($3.70\text{ gf/W}$ at 30% throttle) and a linear throttle feel.

    • Compatible Frames: Any 3.5" freestyle or ducted Cinewhoop frame with a standard $12 \times 12\text{mm}$ M2 pattern.

    • ESC & FC Setup: 35A - 45A 4-in-1 ESC / AIO. Fits perfectly with the motor's 19A peak current headroom.

    • Battery & Weight: 4S LiPo (750mAh - 1100mAh). Keeps total takeoff weight at the ideal 250g - 350g sweet spot.

    Technical Specifications


    • Motor Model: IT'S 1604.5

    • KV Options: 3650KV

    • Configuration: 12N14P

    • Motor Dimensions: Φ21.4 x 24mm

    • Shaft Diameter: 3mm Titanium Through-Shaft

    • Prop Adapter Thread: M3 x 10mm (with M3 locknut)

    • Mounting Pattern: 12 x 12mm M2

    • Lead Wire Specifications: 24AWG Silicone Wire x 150mm

    • Weight (Including Cable): 13.8g

    • Rated Voltage / Max Power: 4S LiPo (16.8V) / 311W

    • Peak Current / Max Thrust: 19A / 599g

    • Bell Material / Bottom Structure: 7075 Aluminum Unibell / Single M2 Screw

    • Factory Dynamic Balance: ≤ 5mg

    specification
