Description
Micro FPV enthusiasts have long struggled with tedious assembly, messy wiring, excessive soldering, and the trade-off between flight controller performance and weight.
Our GOKU F405 SE 3-4S 20A AIO solves all these. Designed specifically for 2-inch and 2.5-inch drones with deep compatibility for Firefly 25mini 3S and Firefly 20pro 4S, it reimagines HD FPV building and flying.
Powered by STM32F405 and ICM42688-P/ MPU6000 / BMI270 gyro for responsive, butter-smooth control. Features dedicated dual BEC for direct DJI O4 Air Unit connection on 3-4S (no extra BEC needed). Full plug-and-play ports mean only motor wires require soldering – easy even for beginners. At just 6.5g with standard 20×20mm mounting, it delivers the perfect balance of functionality and lightness.
Highlights:
✅ Butter-Smooth Flight – STM32F405 MCU for ultra-responsive, jitter-free control
✅ Powerful & Efficient – 20A continuous / 25A peak current, supports 3-4S LiPo batteries
✅ Plug-and-Play HD FPV – Dual BEC (10V/2A + 5V/2A) for direct DJI O4/Air Unit connection, no extra regulators needed
✅ Beginner-Friendly Build – Full plug-and-play ports, only motor wires require soldering

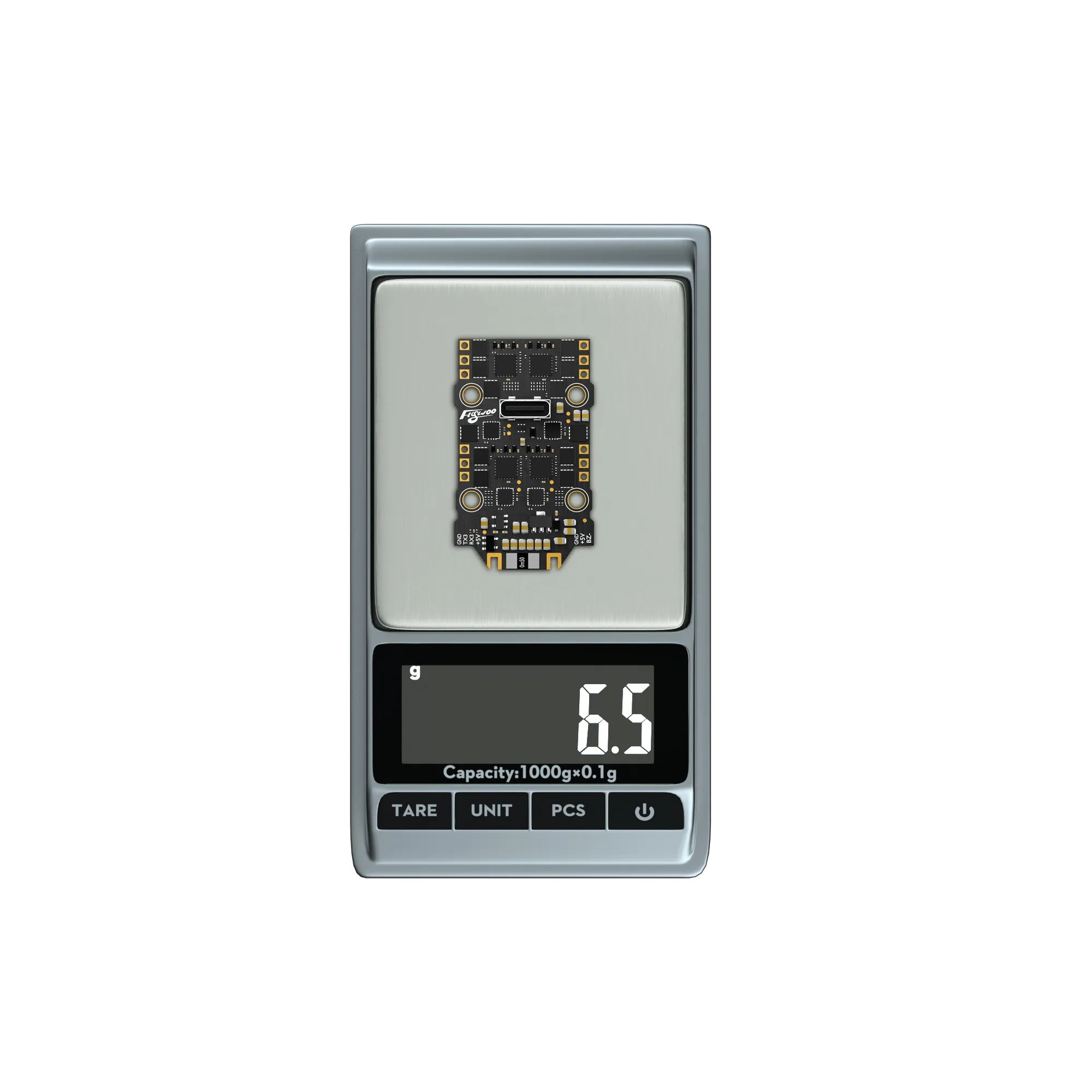

✅ Ultra-Light & Compact – 20×20mm standard footprint, only 6.5g, deeply optimized for Firefly 25mini 3S & 20pro 4S
✅ Unlimited Flight Modes – Onboard 8MB black box, supports Betaflight/INAV dual firmware
✅ Hassle-Free Tuning – Bottom-mounted vertical Type-C port, no disassembly needed for firmware flashing
✅ Built to Last – 6-layer gold-plated PCB, stable operation from -20°C to 50°C
Specification:
| Product Model |
GOKU F405 SE 3-4S 20A AIO |
| MCU |
STM32F405BGA |
| Gyro |
ICM42688P / MPU6000 / BMI270 |
| ESC |
4-in-1, 20A continuous / 25A peak per channel |
| Barometer |
|
| OSD Support: |
|
| Input Voltage |
3–4S LiPo |
| UART |
UART:1(elrs).2.3.4.5(sbus).6
|
| BEC Output |
10V/2A + 5V/2A dual independent |
| Mounting Holes |

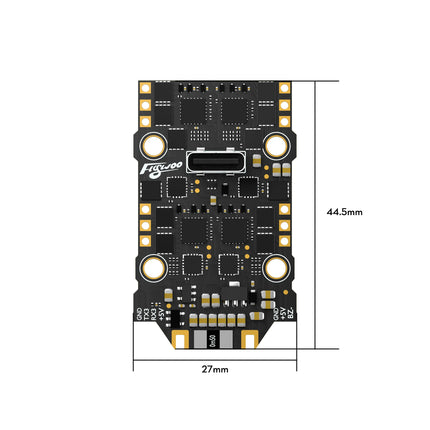

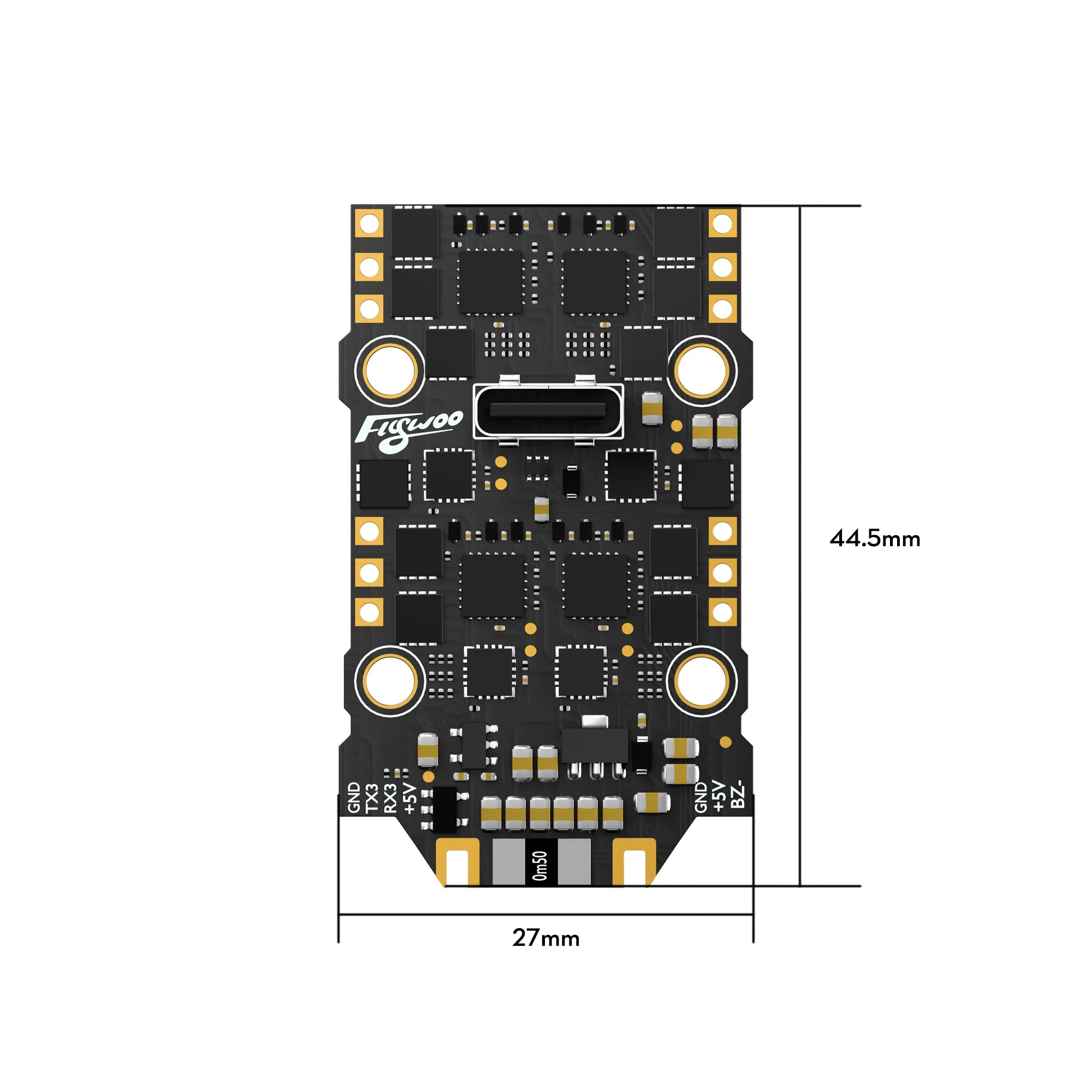

20×20mm standard |
| Net Weight |
6.5g |
| On-Board Storage |
8MB flight black box |
| Interfaces |
HD VTX, receiver, GPS, Bluetooth, buzzer ports; bottom Type-C |
| FC Firmware |
BetaFlight Firmware: FLYWOOF405S_AIO
INAV Firmware: FLYWOOF405HD
|
| Compatible Drones |
Firefly 25mini 3S, Firefly 20pro 4S, 2" / 2.5" micro FPV drones |
| ESC Firmware |
G_H_30_48KHz_Bluejay |
|
|
XT30 |
In the box :
- 1* GOKU F405 SE 3-4S 20A AIO
- 5* M2X10 cup head screws
- 5* M2 nylon nuts
- 5* M2*6.6 shock-absorbing balls
- 1* 220U 25V capacitor
- 1* XT30 Male 18WG power cord
- 1 x Buzzer Connection Cable
- 1 x GPS Connection Cable
- 1 x O4\O4 PRO Connection Cable
- 1 x Receiver Connection Cable
