Description
The SPEEDX2 2207E series features a sleek, all-black glossy design with extensive cutouts for optimal heat dissipation, ensuring durability and impact resistance. Its high responsiveness provides effortless control in every maneuver.
Feature
- Reduced rotor-stator gap ensures rapid response for seamless freestyle flying.
- The fresh all-black glossy design with extensive cutouts enhances heat dissipation for better performance.
- Crafted from 7075 aerospace-grade aluminum with precision CNC machining for a lightweight design.
Specifications
-

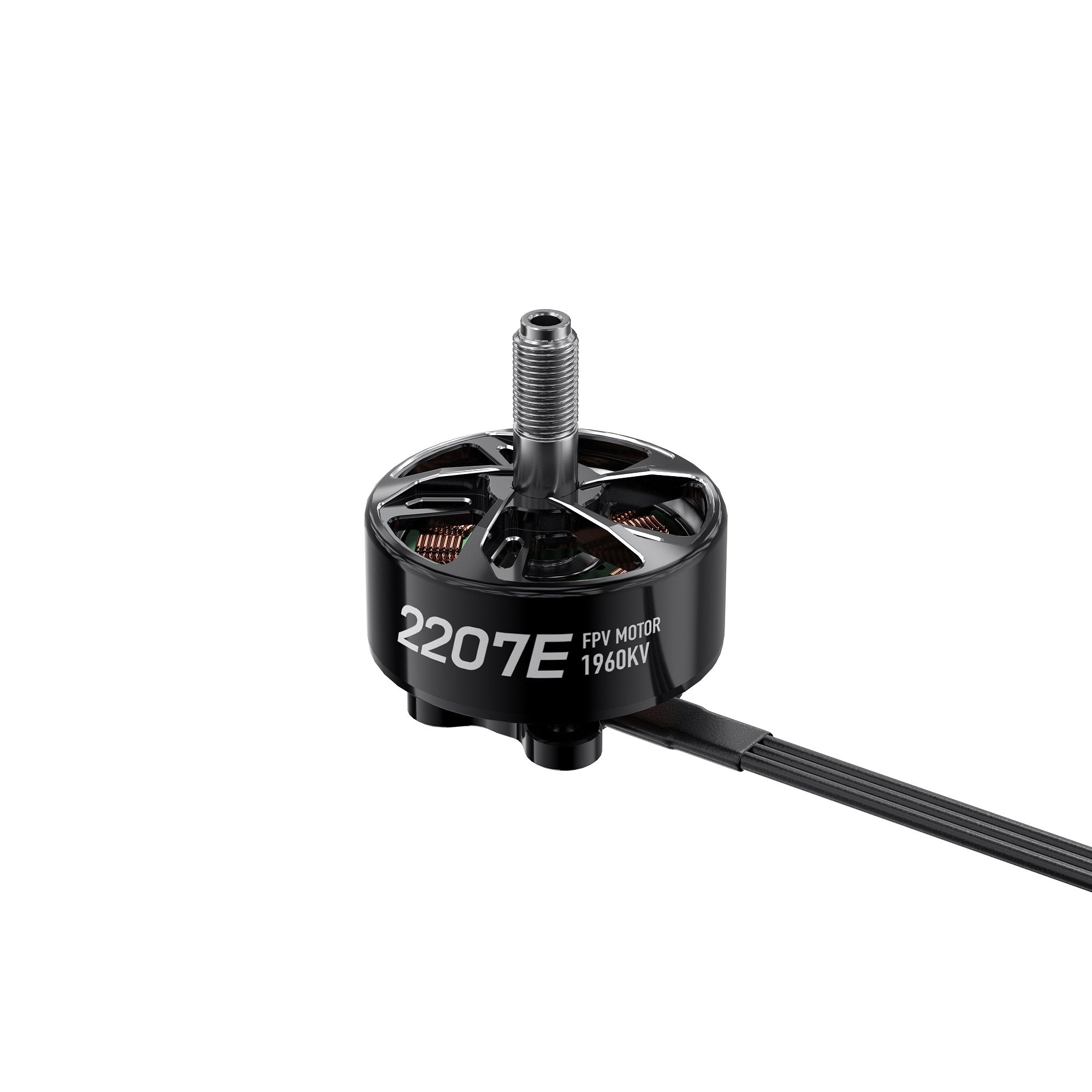

Model: SPEEDX2 2207E Motor
-
KV: 1960
-
Max Watt: 1104.7W
-
Peak Current: 44.57A
-
Interphase Resistance: 69.85mΩ
-
Propeller: 4-5inch-3blade
-
Magnet: N52H
-
Bearing: NMB/NSK
-
Stator Configuration: 12N14P
-
Dimension: 28*19.6mm
-
Shaft Diameter: 5mm
-
Shaft Length: 13.5mm
-
Mounting Hole Size: 16*16mm
-
Wire Specification: 20AWG/150mm
-
Compatible ESC: 50A/6S
-
Input Voltage: 6S
-
Winding: Single-strand copper winding
-
Color: Black
-
Weight: 34.5g (including wire)
-
Compatible Models: Suitable for 4inch-5inch racing FPV quads
