DJI O4 Air Unit Pro (Official EU - Not China)

Description

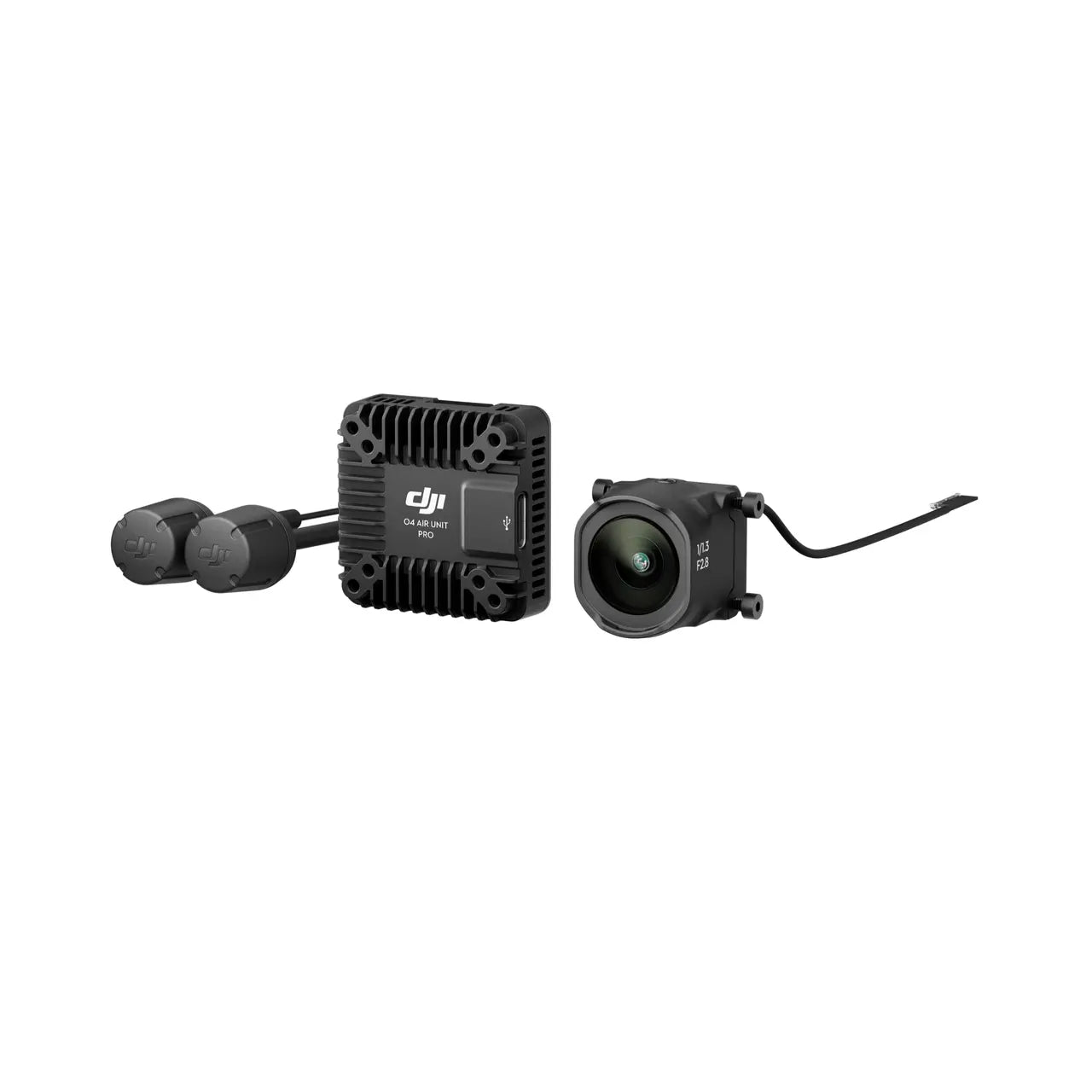

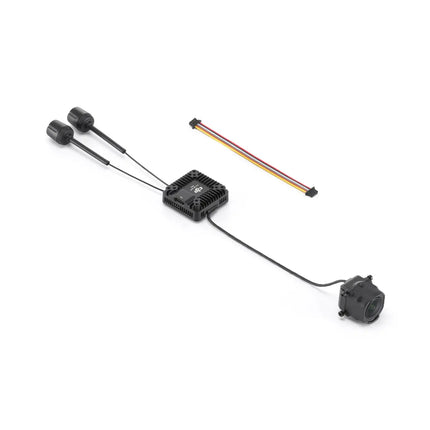

DJI O4 Air Unit Pro

Air unit

  • Weight

  • Air Unit (camera module excluded): Approx. 15.6 g
    Air Unit (camera module included): Approx. 32 g
    Antenna: Approx. 2.1 g/pcs

  • Dimensions

  • Transmission Module: 33.5×33.5×13 mm (L×W×H)
    Camera Module: 25.55×20×23.30 mm (L×W×H)
    Coaxial Cable: 130 mm
    3-in-1 Cable: 100 mm
    Antenna: 110 mm

Video Transmission

  • Operating Frequency

  • 5.170-5.250 GHz
    5.725-5.850 GHz

    Operating frequency allowed varies among countries and regions. Please refer to local laws and regulations for more information.

  • Transmitter Power (EIRP)

  • 5.1 GHz:
    <23 dBm (CE)
    5.8 GHz:
    <33 dBm (FCC)
    <14 dBm (CE)
    < 30 dBm (SRRC)

  • Lowest Latency

  • With DJI Goggles 3 and pick racing mode:
    With 1080p/100fps video transmission quality, the latency is as low as 15 ms.
    With DJI Goggles N3 and pick racing mode:
    With 1080p/100fps video transmission quality, the latency is as low as 19 ms.
    With DJI Goggles 2 or Goggles Integra:
    With 1080p/100fps video transmission quality, the video transmission latency is less than 30 ms.

    Latency data represents the minimum latency during the screen refresh process of DJI Goggles. Tested in an outdoor open environment without interference. The video transmission latency data varies with different devices.

  • Max Video Transmission Range

  • With DJI Goggles 3/DJI Goggles N3:
    15 km (FCC), 8 km (CE), 8 km (SRRC)

    Measured in an unobstructed outdoor environment free of interference. The above data shows the farthest communication range under various standards . The actual maximum communication range during flight is limited by the flight endurance of the aircraft. Always pay attention to RTH reminders in the app during your flight.

  • Live View Quality

  • 1080P@30/48/50/60/100fps

  • Communication Bandwidth

  • Max 60 MHz

  • Antenna

  • 2 antennas, 2T2R

  • Channels

  • Supports auto mode
    Supports manual mode:
    With DJI Goggles 3 or DJI Goggles N3:
    60 MHz: 1 channel; 40 MHz: 1 channels; 20 MHz: 3 channels; 10 MHz: 3 channel
    With DJI Goggles 2 or Goggles Integra：
    40 MHz: 1 channel; 20 MHz: 3 channels; 10 MHz: 3 channels

  • Channels Info

  • FCC/SRRC/CE:
    60MHz/40 MHz：
    Channel 1: 5794.5 MHz
    20 MHz/10 MHz:
    Channel 1: 5768.5 MHz
    Channel 2: 5789.5 MHz
    Channel 3: 5814.5 MHz

Camera

  • Image Sensor

  • 1/1.3-inch CMOS Sensor

  • Lens

  • FOV: 155°
    The equivalent focal length: 12 mm
    Aperture: f/2.8
    Focus: 0.6 m to ∞

  • ISO Range

  • 100-25600 (Auto)
    100-25600 (Manual)

  • Video Resolution

  • 4K (4:3): 3840×2880@30/48/50/60fps
    4K (16:9): 3840×2160@30/48/50/60/100/120fps
    2.7K (4:3): 2888×2016@30/48/50/60fps
    2.7K (16:9): 2688×1512@30/48/50/60/100/120fps
    1080p (4:3): 1440×1080@30/48/50/60/100/120fps
    1080p (16:9): 1920×1080@30/48/50/60/100/120fps

  • Video Format

  • MP4

  • Max Video Bitrate:

  • 130 Mbps

  • Color Mode

  • Normal Mode
    D-Log M

  • Camera FOV

  • Standard
    Wide-Angle
    Ultra Wide-Angle

  • EIS

  • RockSteady 3.0+
    Stabilization function off (supports Gyroflow)

    When RockSteady is enabled, the shooting angle only supports standard.
