Description

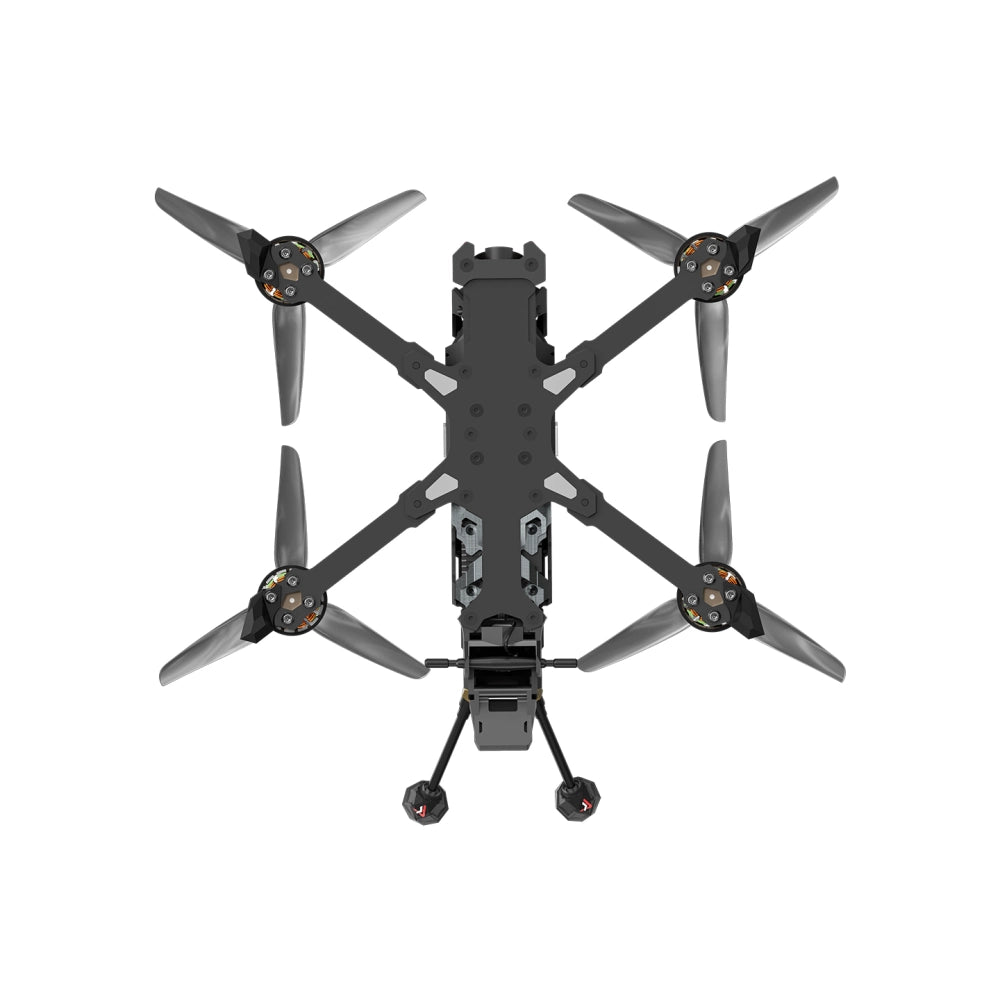

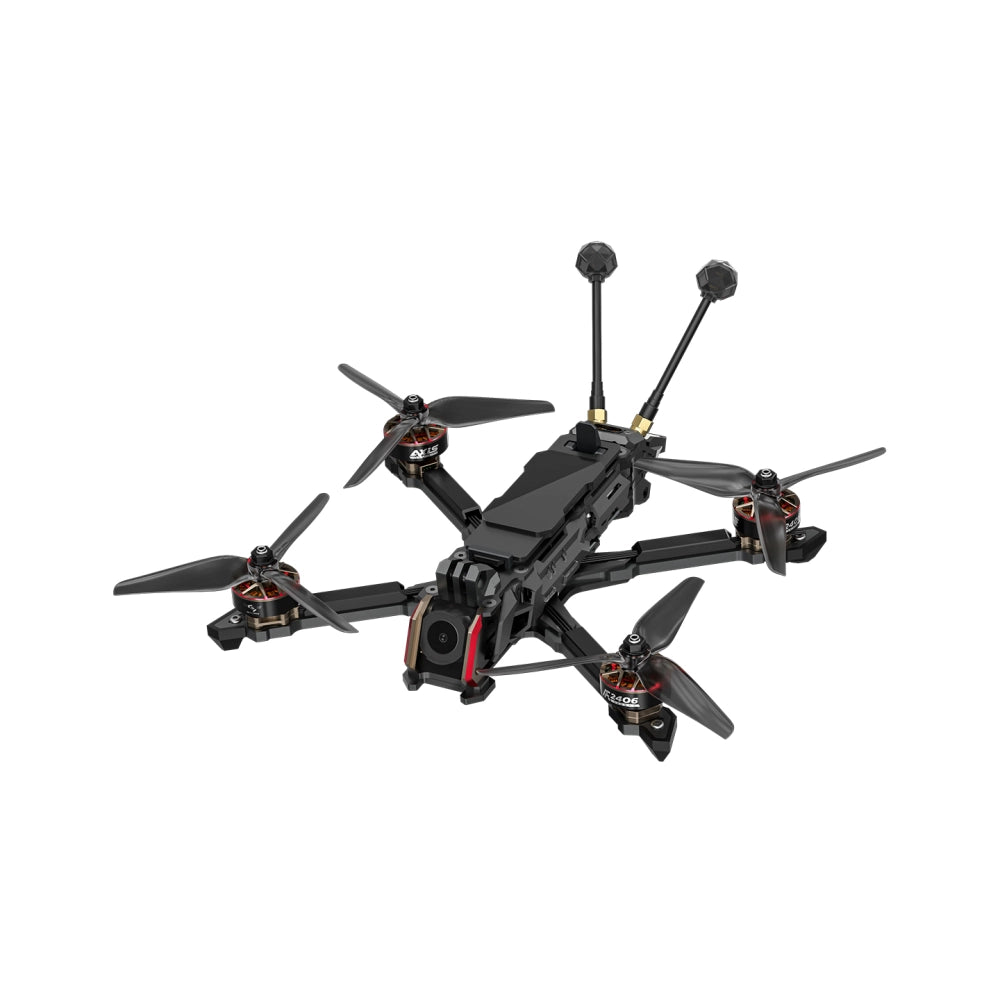

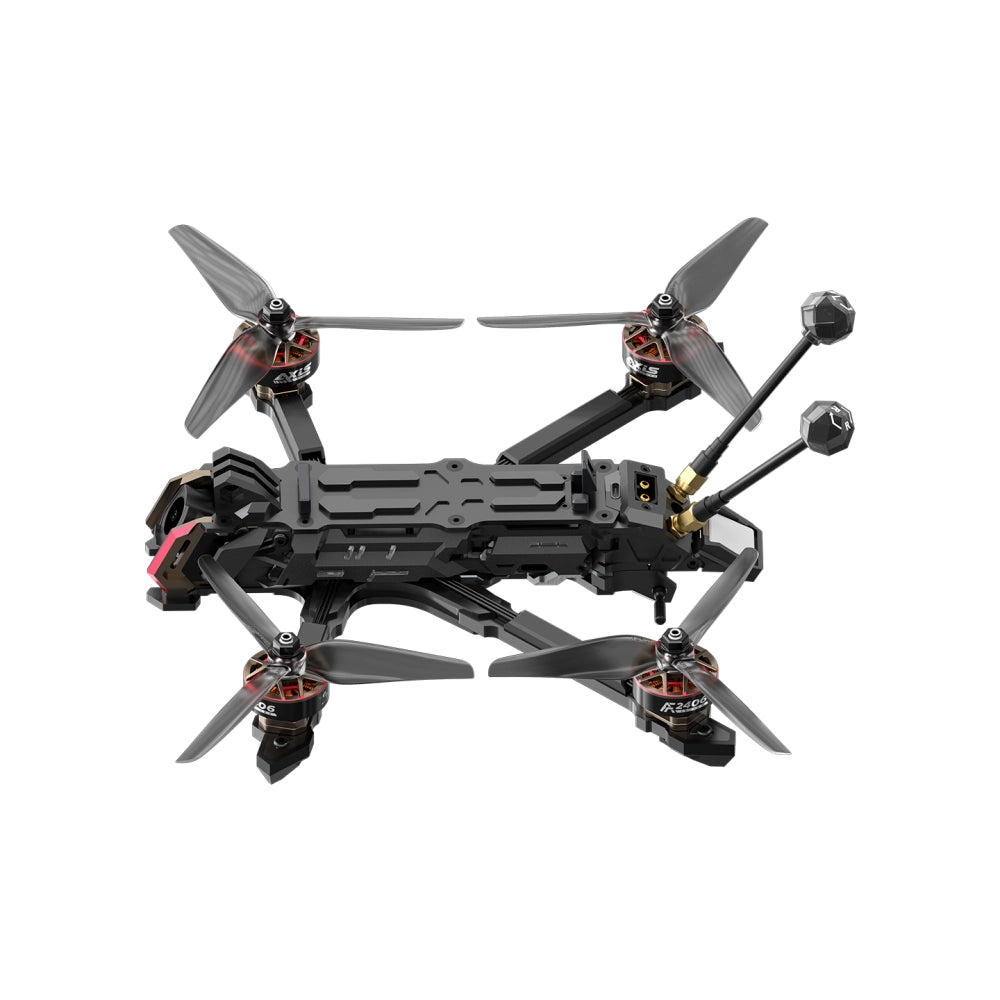

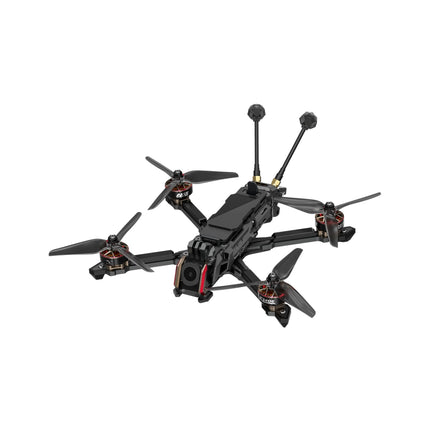

The VERTEX 5 is our brand-new fully enclosed 5-inch DeadCat DC Squished X cinematic freestyle platform, tailor-made for aerial content creators and advanced FPV pilots.
We optimized the whole frame layout for lightweight flight, total ready-to-fly weight only 460g. The fully wrapped protective shell greatly reduces prop collision damage during low-altitude shooting.
Equipped with quick-release side plates, users can complete disassembly, maintenance and component replacement within 1 minute without extra tools.

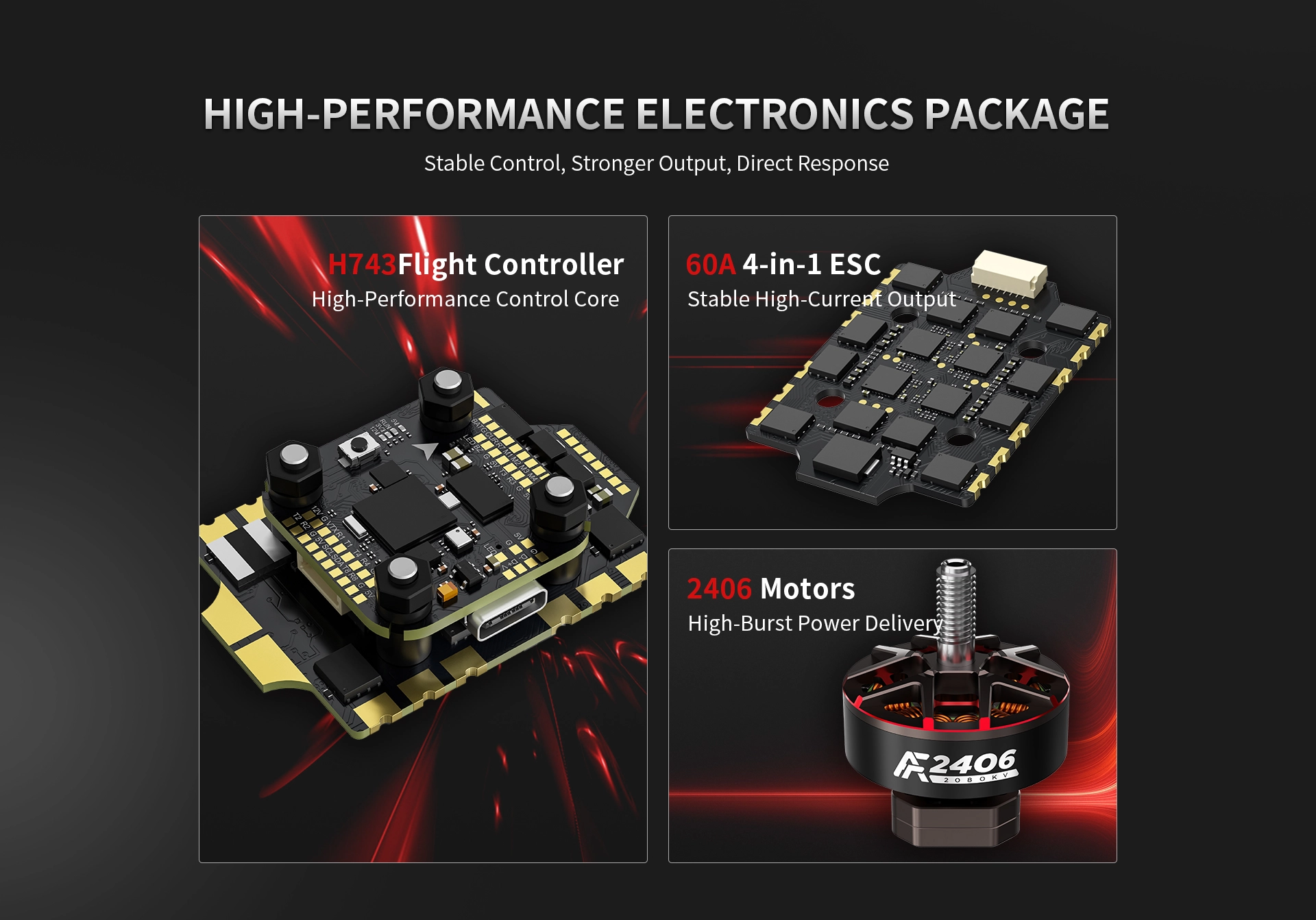

Three optional VTX systems cover digital high-definition and analog low-latency shooting scenarios, built-in high-precision GPS module realizes stable hover, one-key return-to-home and anti-lost flight protection. All core electronic stacks adopt self-developed Argus power system, matching 6S high-voltage battery to output powerful and smooth freestyle flight performance.
*Core Highlights

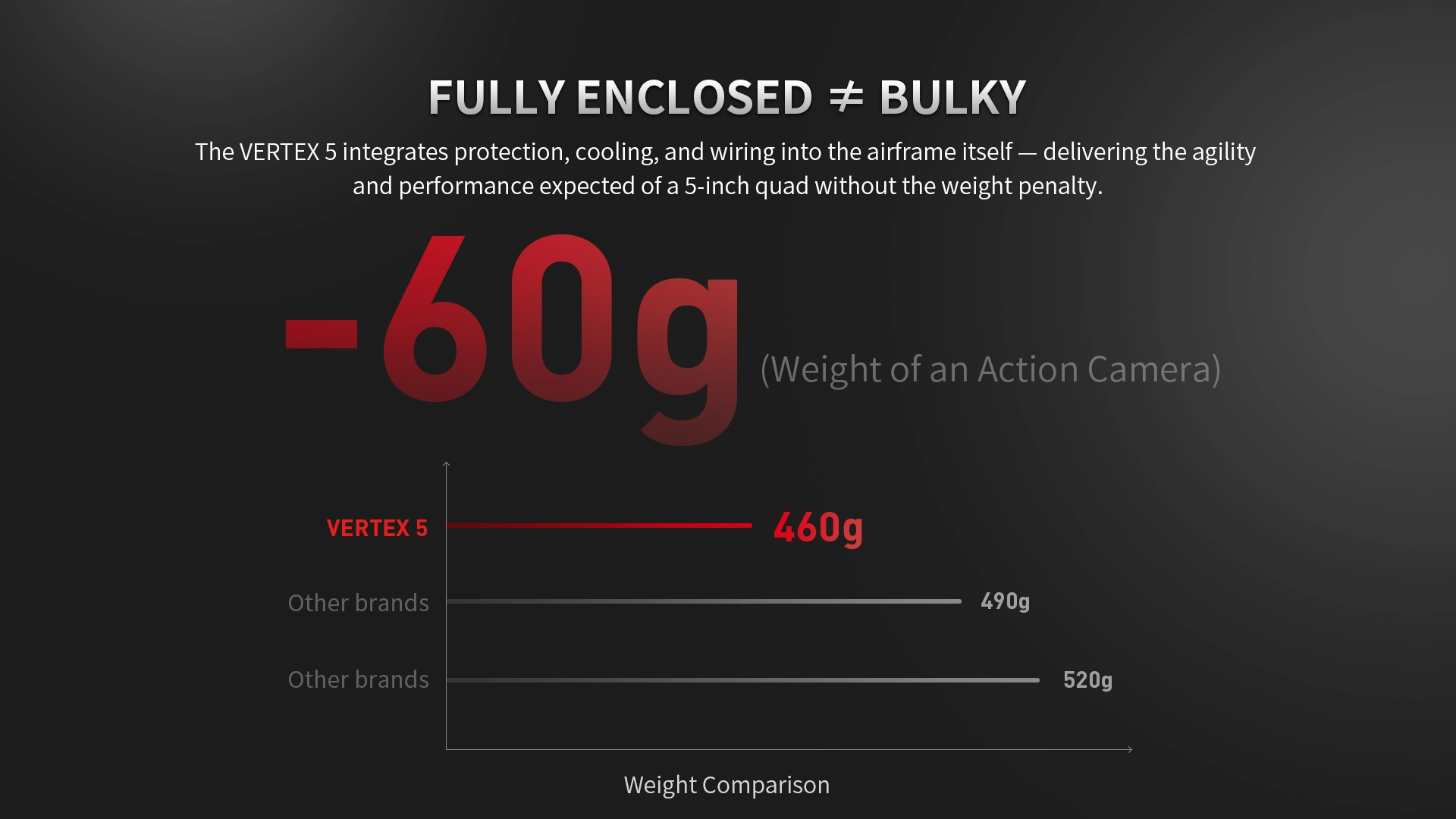

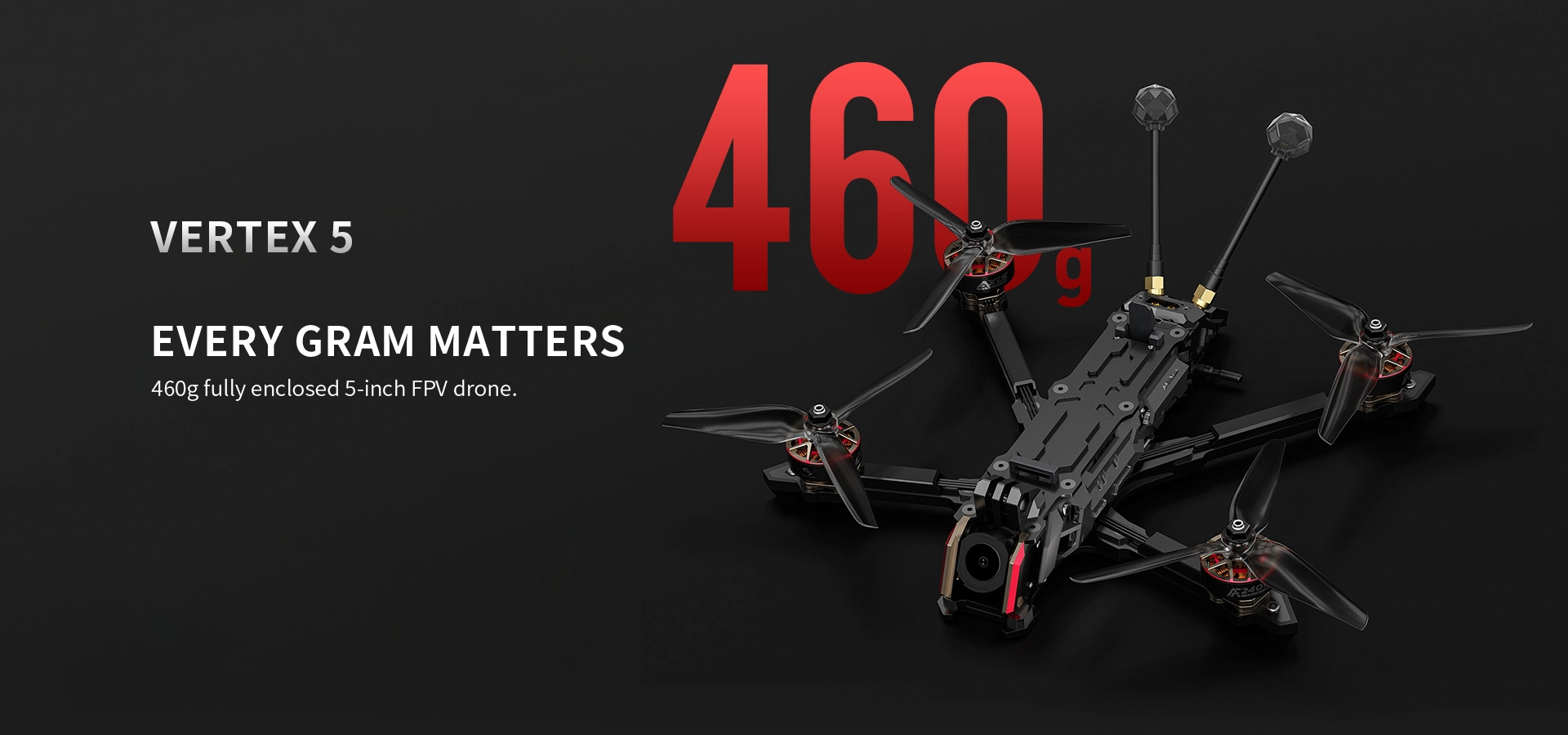

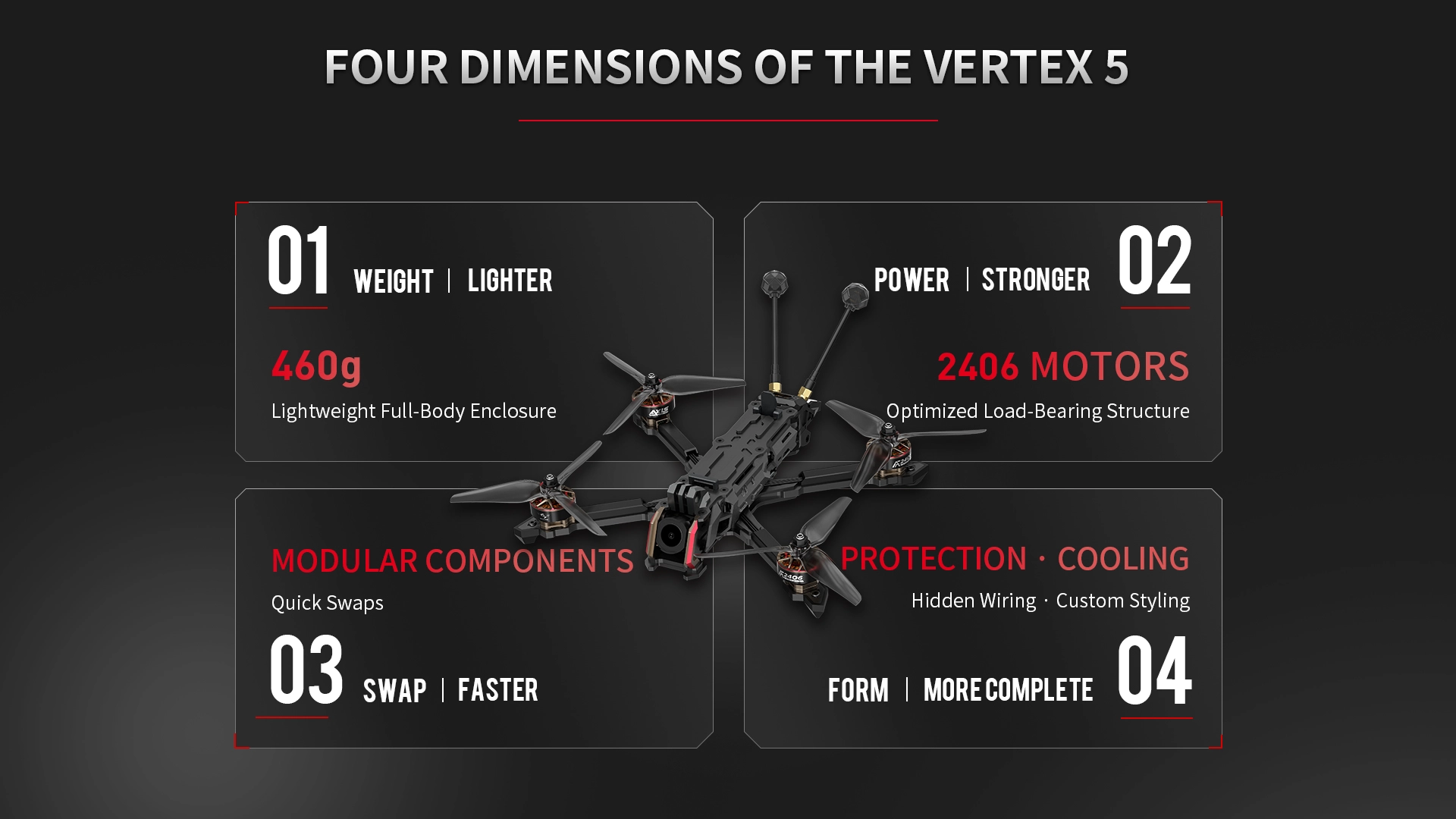

Highlight 1 | Fully Enclosed Protective Shell, 460g Ultra Lightweight
The integrated wrap-around enclosure isolates propellers from obstacles, effectively preventing crash damage to motors and arms. Optimized carbon fiber + nylon composite structure cuts total flight weight to only 460g, bringing longer flight endurance and more sensitive maneuvering feedback.

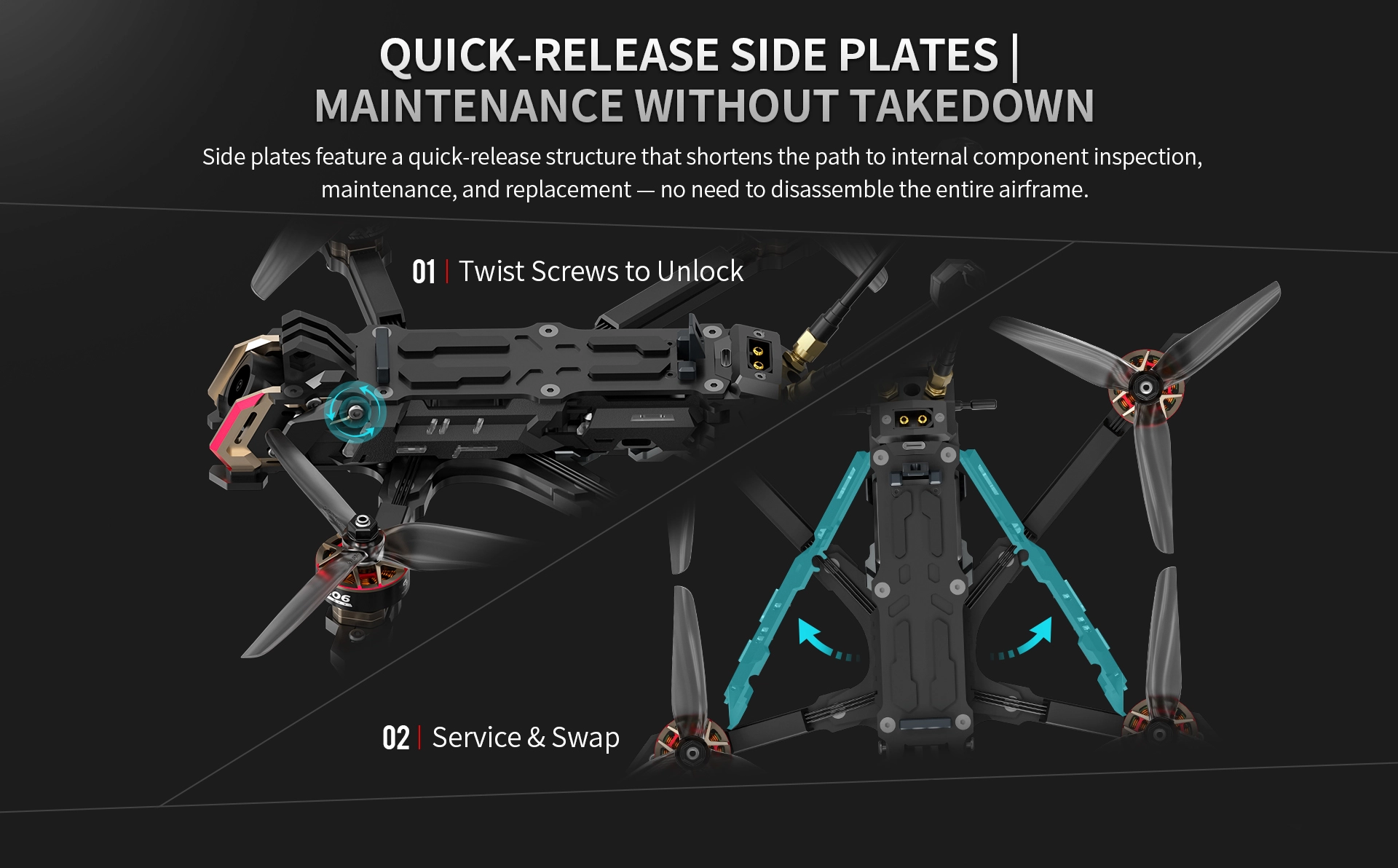

Highlight 2 | Quick-release Side Plates Design
quick-release side plates realize tool-free rapid disassembly. For daily maintenance, camera adjustment, battery replacement and stack inspection, no screwdrivers required, greatly shorten post-crash repair time.

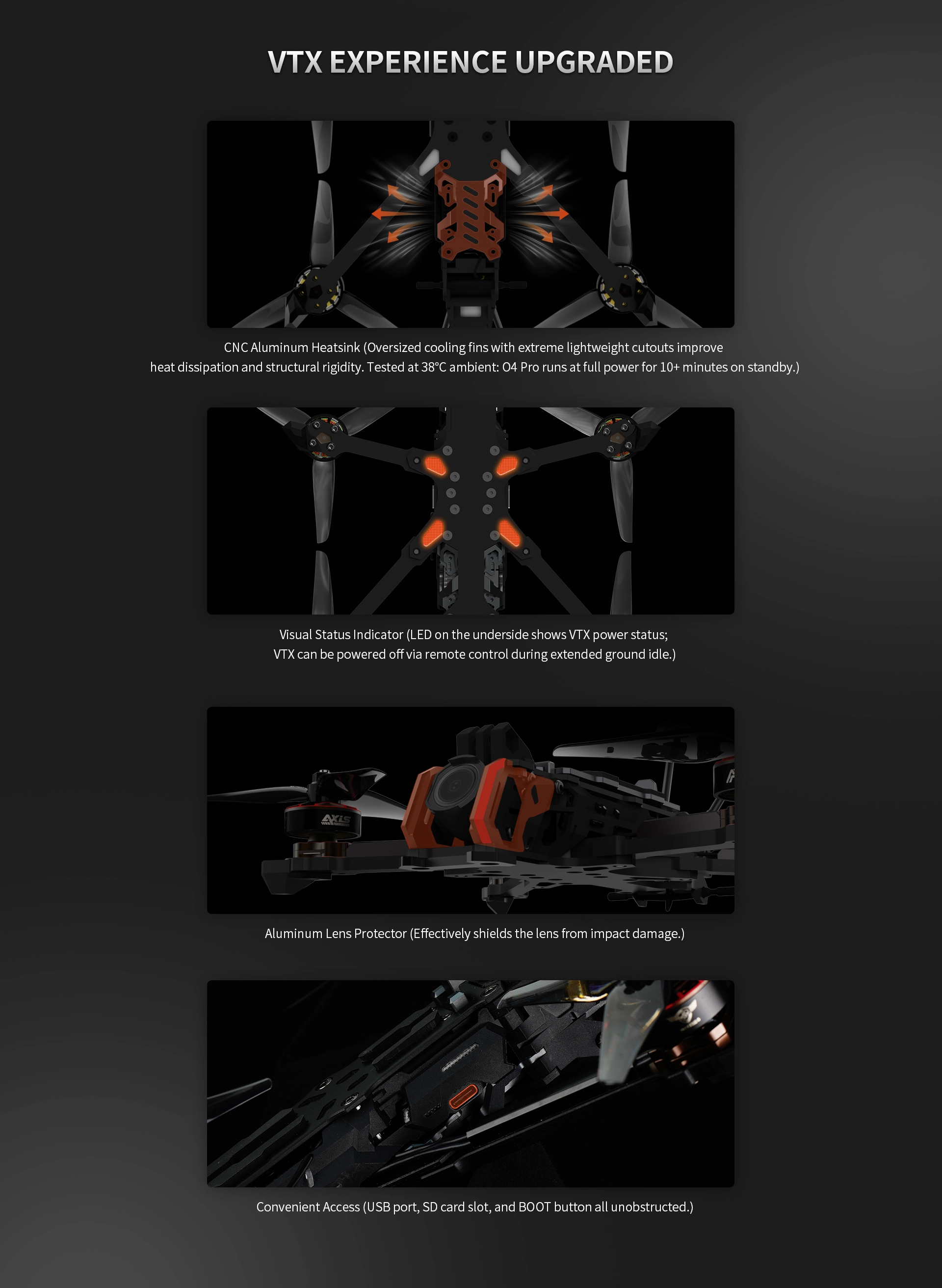

Highlight 3 | Triple Optional VTX System
- DJI O4 PRO: Dual antenna high-definition digital transmission, long range, stable cinematic footage
- DJI O4 WIDE: Wider FOV lens, perfect for wide-angle landscape shooting
- Analog 1.6W VTX: Ultra-low latency, zero delay for freestyle trick practice and racing training

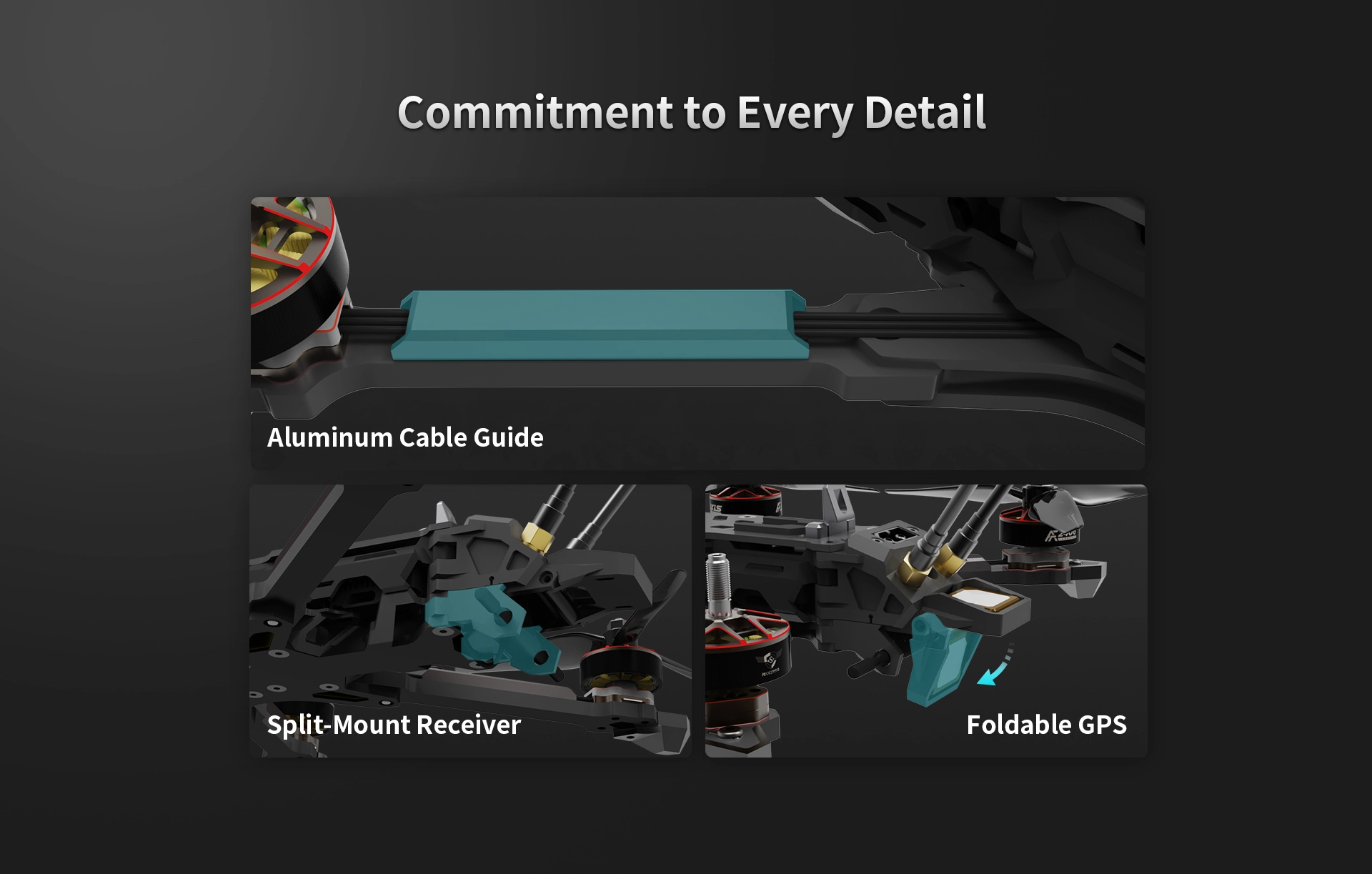

Highlight 4 | Built-in High Precision GPS Module
Industrial-grade GPS chip built into frame, supports stable hovering, low-battery return, lost-signal automatic homecoming. Effectively avoid drone loss during outdoor long-distance flight.
Highlight 5 | 6S DC DeadCat Squished X Layout
Squished X airframe layout eliminates prop shadow from camera view, cleaner film footage. DeadCat DC power system matches 6S LiPo battery, abundant torque for freestyle flips, rolls and low-speed smooth aerial shots.
Highlight 6 | Universal Axisflying Spare Parts & Full After-sales Support
All frame, motor, stack and shell accessories share unified Axisflying standard size, compatible with most mainstream FPV replacement parts. We supply full technical guidance, installation tutorials and global after-sales service.
*Full Specification Table
| Item |
Parameter Detail |
| Model Name |
Axisflying VERTEX 5" |
| Frame Layout |
DeadCat DC / Squished X |
| Ready-to-fly Weight |
460g (Complete enclosed machine) |
| Supported Battery |
6S LiPo HV |
| Side Plate |
quick-release side plates, tool-free disassembly |
| VTX Optional |
DJI O4 PRO / DJI O4 WIDE / Analog 1.6W 5.8G |
| Receiver Option |
ELRS 2.4G BNF / No RX PNP |
| GPS |
Built-in high-precision GPS (standard config) |
| Frame Material |
High-strength carbon fiber + impact-resistant nylon shell |
| Flight Application |
Cinematic aerial shooting, freestyle tricks, outdoor long-range flight |
| Certificate |
CE / RoHS |
| SKU Code |
A01010140 |
*Packing List
- VERTEX 5 Fully Enclosed Frame Drone ×1
- Spare quick-release side plates set ×1
- Propeller replacement set ×2
- Battery anti-slip sticker ×3
- GPS fixing spare screws pack
- Allen screwdriver set
- Official user manual
